AI AESA Radar

Elijah Radar

A scalable AI AESA radar platform for every mission.
Powered by TORIS's proven radar technology.

Elijah X2

Elijah X2 Lite

Elijah X3 Launching Dec. 2026

Elijah X3 Mini Launching Dec. 2026

Trusted by the ROK Armed Forces

Delivered to the Republic of Korea Army, Navy, and Air Force through the 2021 Rapid Acquisition Program.

Selected for Korea’s
Next-Generation Counter-Drone Defense

Selected by the Republic of Korea Army to provide radar capabilities
for next-generation close-range air defense.

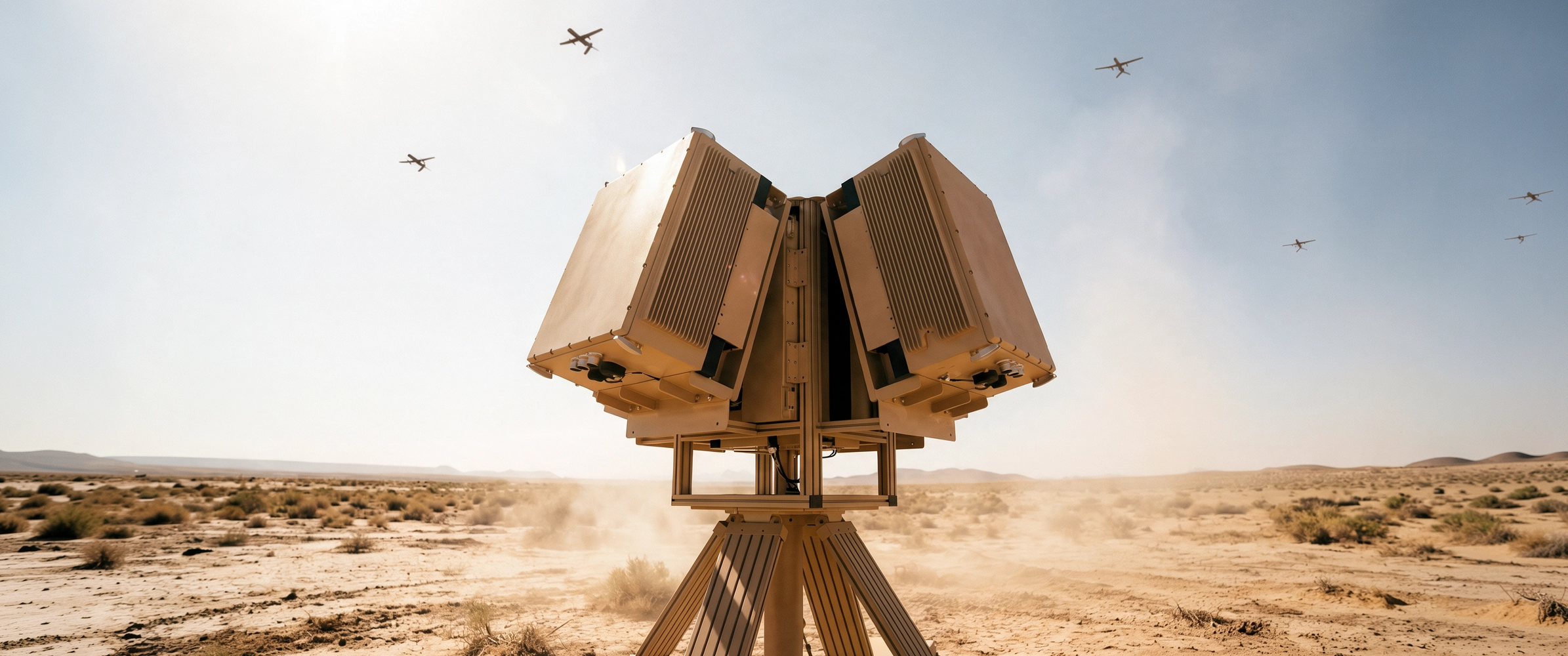

Counter-Drone Capability
on the Move

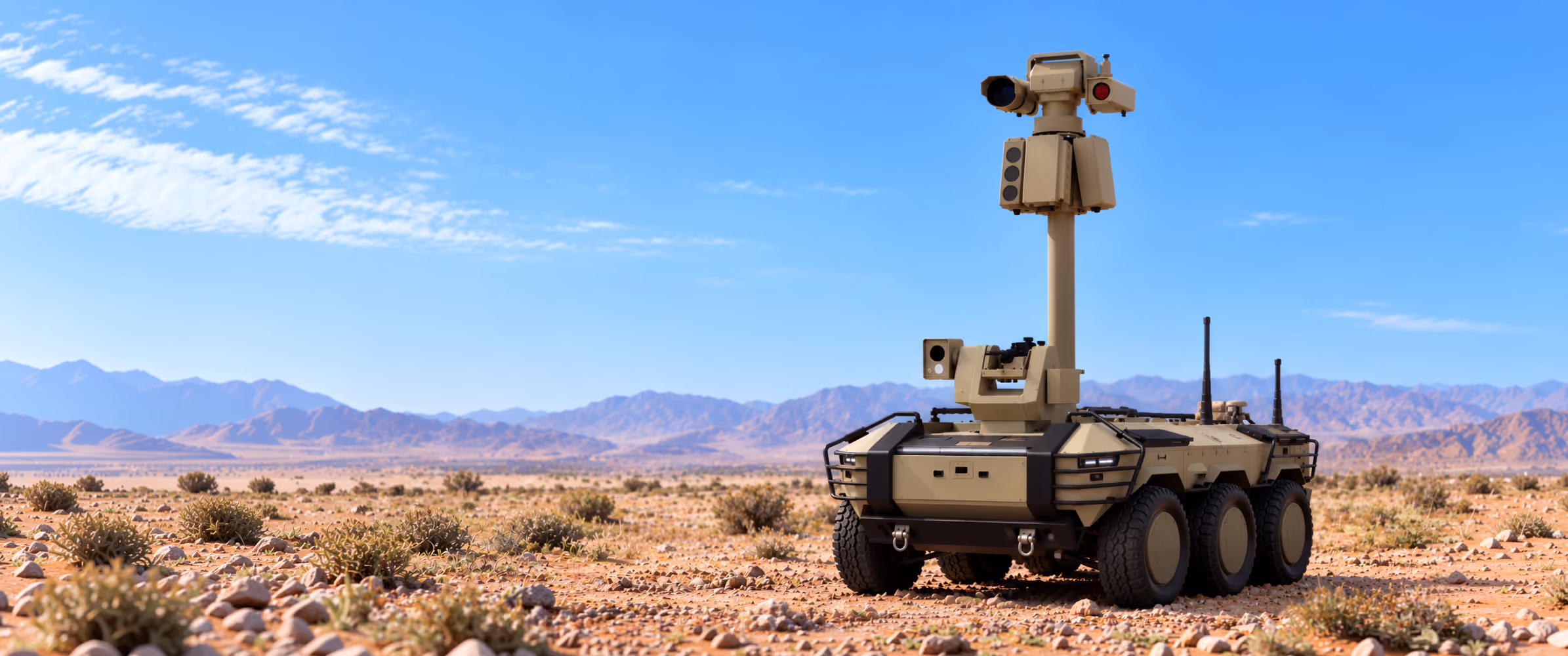

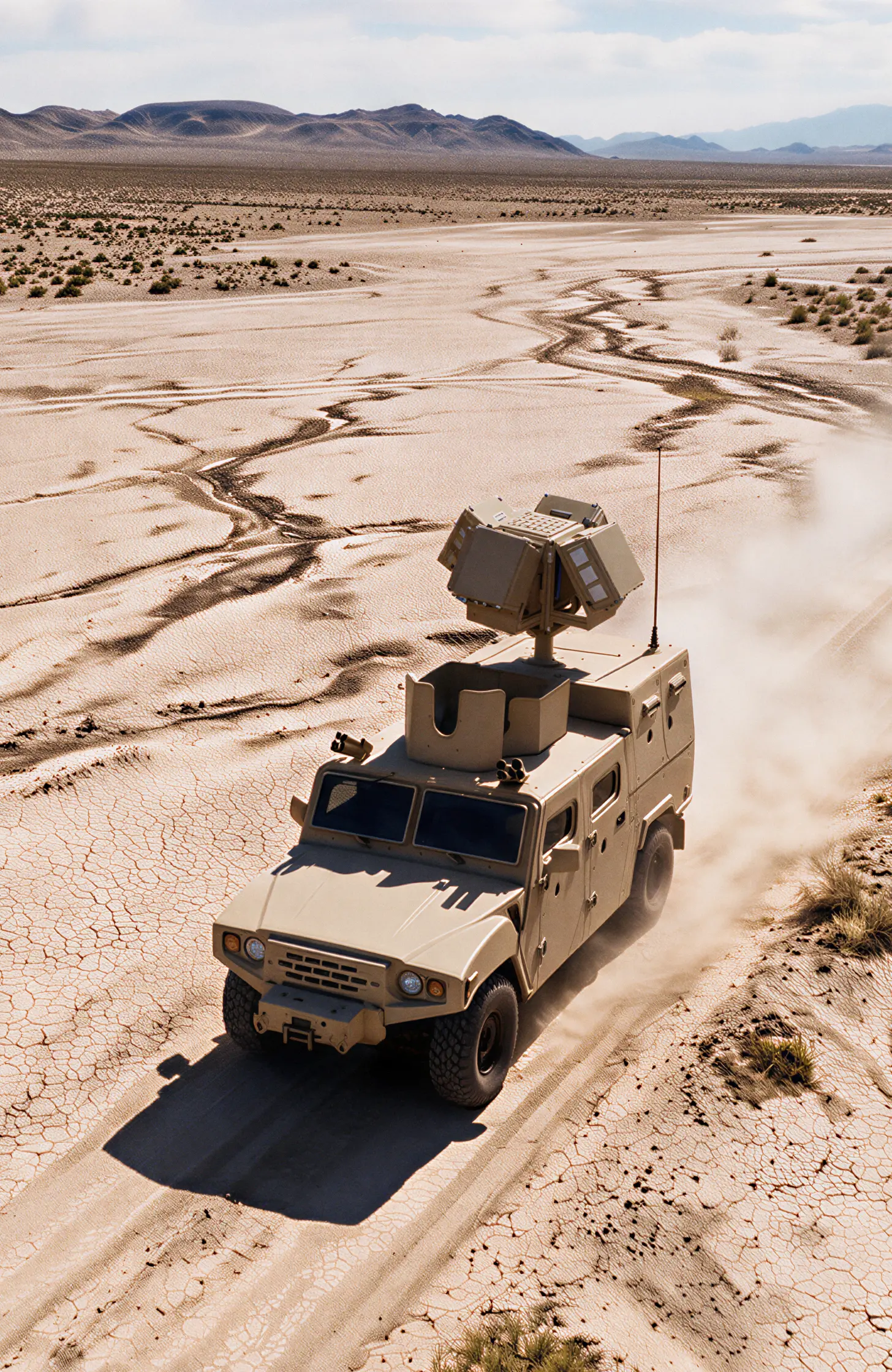

Elijah radar integrated with Hyundai Rotem’s SHERPA
mobile platform for flexible, mobile counter-drone applications.

Military Grade Certified

Certified to MIL-STD-810G, MIL-STD-461G and IP66.

01 · DETECTION RANGE

Long-Range Detection

Detects targets such as the DJI Matrice 350 at ranges of up to 15 km.

02 · OPERATIONAL VERSATILITY

Multi-Domain Coverage

Designed for air, land and maritime surveillance applications.

03 · AI CAPABILITIES

AI-Powered Detection & Tracking

AI-powered detection, classification and tracking with clutter rejection.

Specification

Elijah

Elijah X2

Long-range drone detection beyond 15 km
(DJI Matrice 350, Group 1 reference).

Range

Up to 15km

15 km for DJI Matrice 350 RTK (Group 1 drones).

Angular Accuracy

Less than 1°

Azimuth and elevation angle accuracy (RMSE), each below 1°.

Max Target Speed

70 m/s

Maximum radial velocity; up to 140 m/s in Boosting Mode.

Max Tracks

2,000+ / 1,000+

Simultaneous detection / tracking

Size & Weight

585 × 520 × 280 mm³ / 65 kg

Heatsink: 20 kg

*Maximum detection range is the Max at Boresight

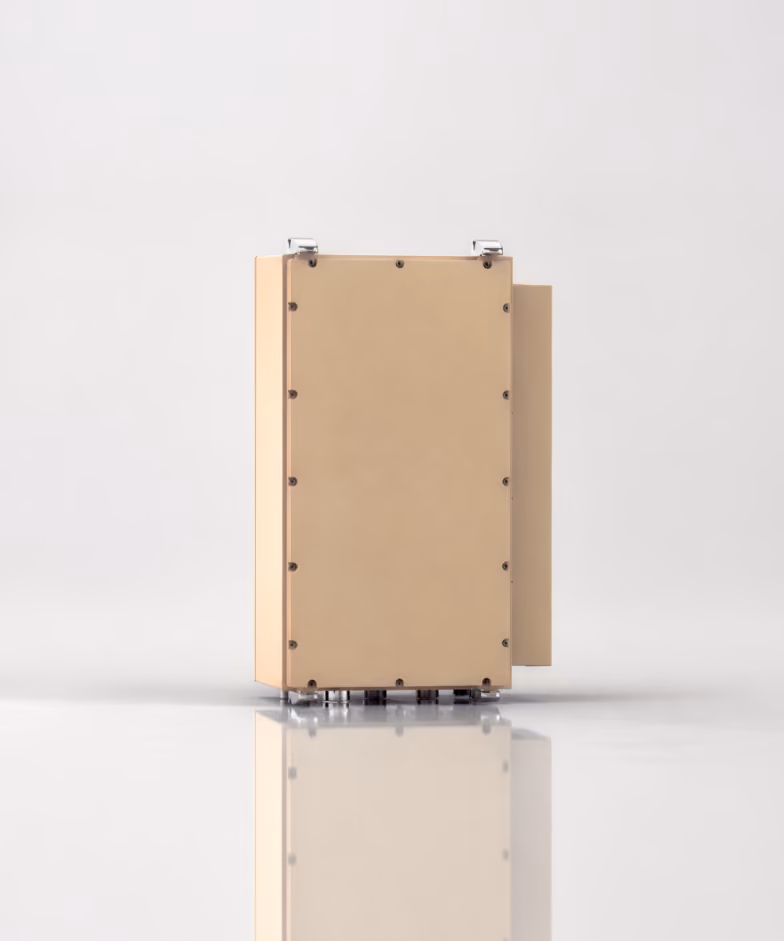

Elijah X2 Lite

Long-range drone detection beyond 8 km (DJI Matrice 350, Group 1 reference), optimized for mobile platform integration.

· Range

Up to 8km

8 km for DJI Matrice 350 RTK (Group 1 drones)

· Angular Accuracy

Less than 1°

Azimuth and elevation angle accuracy (RMSE), each below 1°

· Max Target Speed

70 m/s

Maximum radial velocity; up to 140 m/s in Boosting Mode.

· Max Tracks

2,000+ / 1,000+

Simultaneous detection / tracking

· Size & Weight

330 × 530 × 280 mm³ / 32 kg

*Maximum detection range is the Max at Boresight

Elijah X3

Ultra-Precise Angular Accuracy 0.2°~0.3°,with same detection performance as the X2

· Range

Up to 15km

15 km for DJI Matrice 350 RTK (Group 1 drone).

· Angular Accuracy

Less than 0.2° ~ 0.3°

Azimuth and elevation angle accuracy (RMSE), each below 0.2°

· Max Target Speed

70 m/s

Maximum radial velocity; up to 140 m/s in Boosting Mode.

· Max Tracks

2,000+ / 1,000+

Simultaneous detection / tracking

· Size & Weight

585 × 520 × 280 mm³ / 65 kg

Heatsink: 20 kg

*Maximum detection range is the Max at Boresight

Elijah X3 Mini

Compact design with over 20% reduced size and weight, same detectionperformance as the X2 Lite

· Range

Up to 8km

8 km for DJI Matrice 350 RTK (Group 1 drones)

· Angular Accuracy

Less than 1°

Azimuth and elevation angle accuracy (RMSE), each below 1°

· Max Target Speed

70 m/s

Maximum radial velocity; up to 140 m/s in Boosting Mode.

· Max Tracks

2,000+ / 1,000+

Simultaneous detection / tracking

· Size & Weight

314 × 350 × 263 mm³ / 24 kg

*Maximum detection range is the Max at Boresight
